Product Information
Techincal Datasheet:
Model
PSAW-323C
Maximum Capacity
320 g
Minimum load
0.02 g
Readability
0.001 g
Repeatability
0.001 g
Linearity (±)
0.002 g
Tare Range (Subtractive)
-320 g
Minimum Weight (USP, 0.1%, typical)
Minimum weight (U=1%, typical)
1 g
0.1 g
Pan Size (mm)
130 x 130
Response Time
1 Sec.
Display
Large, bright Vacuum Fluorescent Display
Calibration
Motorised Internal Calibration
Units of measure
gm, mg, ct, GN, mo, oz, dwt, t1T, t1H, t1S, mom, Bat, MS
Operating Temp.
18º to 30ºC
Sensitivity Drift.
± 2ppm (2 x 10 / ºC)
Interface
RS 232C Optional USB (Windows direct communication).
Application Modes
PCS, % Weighing, Animal / Dynamic Weighing, Check Weighing, Automatic Density Determination, Formulation Automatic Statistic Calculator etc.
Power Supply
DC Adaptor, input 100 ~ 240 0.8A output 13V / 15.A, 50-60Hz
Compliance
ISO & CE
Balance Size (W x D X H)
342.5 x 212 x 271 mm / Chamber Height 169.5mm

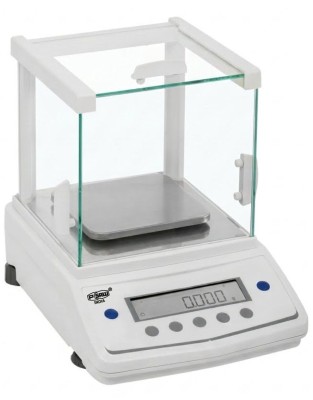

Precision Balance (323C)
FEATURES:
- Robust and durable construction for long service life.
- Advanced Compact Super Hybrid Sensor (C-SHS) technology ensures compact size, high speed, and exceptional weighing accuracy.
- Built-in protection against vertical and transverse overloading.
- Adjustable response settings to minimize the effects of drafts and vibrations.
- Fast and precise weighing with approximately 1-second stabilization.
- Versatile weighing system & Convenient One-Touch Calibration (CAL) button for easy internal calibration.
- Supports multiple weighing applications with high precision.
- User-friendly operation with quick and reliable measurements.
- Suitable for laboratories, research institutes, pharmaceutical, chemical, educational, and industrial applications.
