Product Information
TECHNICAL PARAMETERS:
Temperature Range
4°C-100°C (Heating/Cooling Rate up to 5°C/s)
Temp. Control Method
Peltier
Temperature Accuracy
≤ ±0.2°C (At 55°C), ≤ ±0.3°C (At 95°C) (After 30 mins Stabilization at 55°C, Sample Volume 20µL)
Temp. Accuracy
≤ ±0.2°C
Reaction Volume
5-100μL
Temp. Uniformity
≤±0.4°C
Channel Format
96/4 Channels
Temp. Control Range
4°C-100°C
Sample Appearance
Optical Tube
Temp. Setting Time
≤ 20 sec (Max.)
Temperature
≤ ±0.2°C
Temp. Increment/Decrement
0.1°C
Optical System
Top-View, Multiple Wavelength Excitation & Detection for More Than 4 Dyes
Data Collection Mode
In Tube Mode, By WELL Scanning
Fluorescence System
F1: FAM, SYBR Green I
F2: HEX/VIC/JOE/TET, Heaven, CAL Fluor Gold 540
F3: ROX, Texas Red
F4: Cy5
F5: Quasar 670
Fluorescence Channel
5 Detection Channels with Independent Excitation Source, Detecting 5 Dyes at Same Time With Better Efficiency & Accuracy
Dynamic Range
> 1010 (Bio-rad, High 5 Order of Magnitude)
Excitation Light Source
High Brightness and Long Life LED (More than 10? hours)
Operation Interface
10-inch color LCD Touch Screen, USB 2.0
Software
PCR
Data Storage
Built-in
Analysis Function
Quantitation/Relative Quantitation/Genotyping/Melting Curve/HRM/Multiple Standard Curves
Voltage Range
100-240V
Detection Sensitivity
Detects minimum of 3 copies of target gene in 25 ul (Plasmid or Human Genomic DNA)
Power Supply
650 VA
System Dimension (WxDxH) mm
520
Net Weight (kg)
21

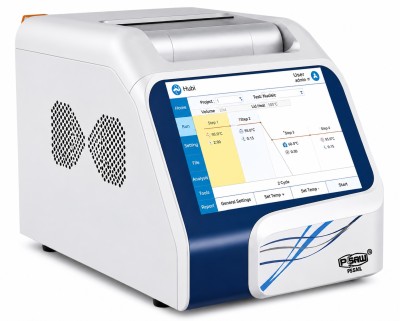

REAL TIME PCR MACHINE
- High Accurate
- User Friendly Touch Screen
- Reliable Performance
