Product Information
TECHNICAL PARAMETERS:
- 1. Model : PSAW-70BL
- 2. Max. Speed : 17,500 RPM
- 3. RCF Range : 30,130xg
- 4. Motor Driven : Brushless induction drive motor.
- 5. Ambient Temp. Range : 0 to 50°C, (Relative Humidity 15% to 90%)
- 6. Working Temp. Range : - 5°C to 40°C maintained 4°C
- 7. RPM Setting accuracy : ±5%
- 8. Noise Level : <60dba
- 9. Rotor Compatibility : Fixed-angle & Swing-bucket rotors;
- 10. Tube Compatibility : Compatible with 0.2 mL PCR tubes, spin columns, 1.5/2.0mL, 5mL, 15mL & 50mL tubes, with adapters.
- 11. Tube Capacity : 1.5/2.0 mL x 48 tubes.
- 12. Dedicated Rotors : 5mL Conical tubes, 15/50 mL Conical tubes & MTP/96-well plates.
- 13. 1Fast Cooling : Fast-temp. cooling function.
- 14. Programs : 45 programmable programs with >= 5 quick-access keys.
- 15. Speed Setting : RPM and RCF modes.
- 16. Compressor : Automatic Shut-off 10 hrs. of non-use.
- 17. Acceleration/Deceleration : Dedicated keys for gentle acceleration/deceleration.
- 18. Rotor Bore : ≥45° angle to minimize pellet smear along tube walls.
- 19. PC Connectivity : USB port.
- 20. Accessories : Plate rotor with 2 adapters for 96-well PCR plates.
- 21. Fixed Angle : 30 x 1.5 / 2.1 Tubes; 17,000 RPM (≥20, 800xg)
- 22. Swing Bucket : ≥ 4 ,500 RPM with lid.
- 23. Accessories : Suitable Voltage Stabilizer.

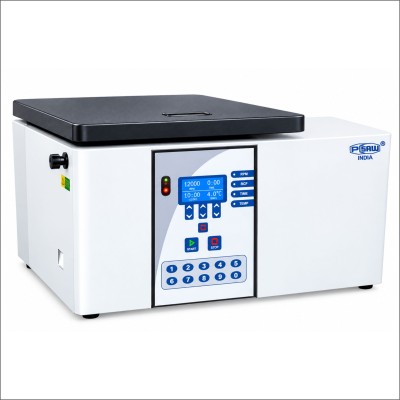

REFRIGERATED CENTRIFUGE (70BL)
- Large LCD Display : Shows RPM, RCF, time, temperature and more.
- Timer Function : Starts after reaching the set RPM.
- Wide Speed Range : Suitable for short-spin protocols.
- User-Friendly : Dedicated short-spin key with user-defined speed.
- Safety & Protection : Automatic pre-cooling and rotor recognition.
Key Features:
- Large backlit, menu-driven multilingual display wiith extended display of set parameters.
- Timer starts after reaching the set RPM; suitable for short-spin protocols.
- Dedicated Short-Spin Key with user-defined speed.
- Made of Metallic Material and autoclavable 121°C rotors with lids.
- Built-in drain to prevent water accumulation.
- Aerosol-tight rotors with third-party certification.
- Automatic pre-cooling bassed on programmable date/time.
- Automatic rotor recognition with maximum-speed setting.
- Lock function to prevent accidental program changes.
- Suitable for genotyping applications.
- RPM, RCF, Set/run time, rotor status and imbalance indication.
- Imbalance sensor & rotor recognition technology.
