Product Information
Technical Parameters:
- Temp Range : -20°C to +40°C.
- Max Speed : 18000RPM
- Max RCF : 32,000×g.
- Rotors : Autoclavable 121°C (Swing Out Rotor and Fixed Angle Rotor)
- Display : Microprocessor Controller with LCD Display
- Timer Range : 1min-99Hrs./59min.
- Noise Level : <58db.
- Fixed Angle Rotor Capacity : 1.5/2 mL, 0.2 mL, 0.5 mL, 5 mL, 15 mL, and 50 ml. Centrifugal PP & Glass tubes.
- Power Supply : 220–240V AC, 50/60 Hz., Single-phase
- Warranty : 220–240V AC, 50/60 Hz., Single-phase
- Certification : CE Certified.
Rotors
Sizes
Qnty
Rotors
Sizes
Qnty
Fixed Angle
0.2ml
48 Nos
Swing out
2ml
60 Nos
0.5ml
24 Nos
5ml
60 Nos
1.5/2ml
24 Nos
15ml
36 Nos.
5ml
12 Nos
50ml
16 Nos.
15ml
12 Nos
250ml
4 Nos.
50ml
6 Nos
Micro Plate / Deep Well
96 Nos. Each

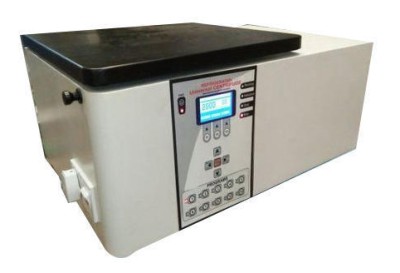

REFRIGERATED CENTRIFUGE (8BL)
Salient Features:
- Temp. control with a cooling system.
- Ensuring sample integrity during centrifugation.
- Fast, Rapid and Pre-cooling Temp.
- Automatic Rotor Recognition and imbalance detection.
- Motorized lid lock System.
- Microprocessor with LCD display (with backlight) for real-time.
- Monitoring of parameters such as speed, RCF, time, and temp..
- Speed adjustment in increments of 100 RPM.
- Direct, Brushless induction motor for maintenance-free, high-efficiency operation.
- Acceleration 9 and deceleration 9 stage profiles for sample User-selectable.’
- Noise insulation design with low-noise fans and console insulation.
- Automatic rotor recognition system that auto-identifies installed rotors.
- Adaptability for various tube formats through compatible rotor heads and adapters.
- System 0.2 mL PCR tubes to spin column tubes.
- Soft-touch, one-finger ergonomic lid closure for easy and safe operation.
- Dual door locking system for enhanced user safety.
- HOLD function for continuous operation.
- End-of-run timer to indicate completion and elapsed time post rotor stop.
- Noise insulation design with low-noise fans and console insulation.
- Built-in condensed water drainage system to prevent water accumulation during prolonged cooling cycles.
- Over-speed detection and Over-temp. protection.
- Automatic imbalance detection and system shutdown.
- Self-diagnostic system for internal fault monitoring.
- PTFE-coated inner surfaces for high chemical resistance and easy decontamination.
- UPS Facility with 30 min. power backup.
