Product Information
TECHNICAL SPECIFICATIONS:
- Max. Speed : 14000 R.P.M. (±10 RPM Set Speed Control)
- Max. RCF : 20800xg
- Timer : 9hr-59Min.
- Motor : Brushless Motor
- Temp. Range : From Room temp. range - 9°C to - 40°C (Maintain 4°C) Max Speed
- Temp. Accuracy : ±2°C (at 14000 rpm upto 5min. operation of centrifuge)
- Power : AC 220V 50 Hz 20A
- Noise Level : <55db
- Dimension : 25x20x14" (LxWxH) approx.
ROTOR & ACCESSORIES:
Rotor Type
Rotor Capacity
Speed on Rotor (RPM)
R.C.F.
Angle Rotor
6 x 85ml
12000
18500 xg
Angle Rotor
30 x 1.5 / 2 mL
14000
20800 xg
Swing Rotor
12 x 50ml
3900
3214xg
Bucket & Adapter
2ml, 56 x 15ml and 28 x 50mL Conical tubes

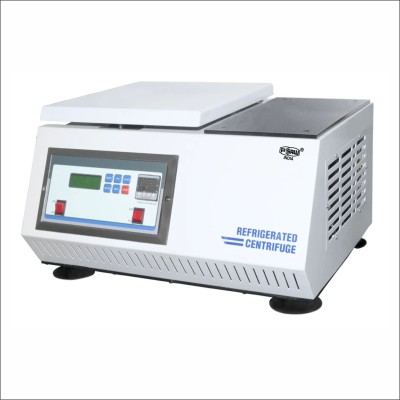

REFRIGERATED CENTRIFUGE (BRUSHLESS MOTOR)
SALIENT FEATURES:
- Bench Top High Speed Refrigerated Centrifuge Machine
- Heavy duty C.R.C. Construction Finished with Powder coating
- Stainless Steel centrifugal Bowl for Extra protection & Easy cleaning.
- Fitted with Well Balanced Brushless Induction Motor with electronic drive.
- Compact work Area and Ergonomic height to ensure sample loading and unloading (Easy Cleanable)
- Aerosol tight quick lock caps for safe centrifugation of hazardous samples
- 4 lines, 20 Characters. Microprocessor based LCD Display for Set time, run time, set and run rpm, ref and rotor identification.
- Digital Timer 9hr-59min., Soft touch lid Closure lock & fast spin option
- Dynamic brake (Automatic) & imbalance detector.
- Selection of 10 Acceleration 10 Deceleration profile.
- Motorized lid lock System.
- Both rotors and adapters for Autoclavable.
- Centrifuge timer start after the RPM reached pre cooling program.
- Automatic rotor recognition to sense rotor to max. allow speed ensure safety.
- Microprocessor based. Programmable Speed Regulator from 2000 to 14000 in interval of 100 RPM
- Last Test parameter Recall and Digital Displays Automatically on LCD
- P.I.D. Electronic Digital temp. Controller Cum indicator is Fitted to control the centrifuge temp. from room temp. upto - 40°C means shuts off the Coolion fing Compressor within Accuracy of ± 2°C
- CFC Free Refrigeration System Optimized Cooling Performance
- Rotor Made of Anodized Aluminium Chemical Resistance material.
- RPM/RCF Conversion features and RCF selection via radius available
- Built in drainage facility for Condensed water and Standby Refrigeration for maintain temp. when not using.
- IEC 61010, CE and IEC IVD Compliance Standard.
- IQ. OQ Documentation and NABL Calibration Certified.
- Compatible Voltage Stabilizer
- Supply Completed, Instruction Manual, Cord & plug to Work on 220V, 50Hz A.C.
