Product Information
Technical Parameters:
- Type : Heavy-duty Refrigerated Shaker Incubator with stacking capability
- Speed : 25 to 400 RPM (for smaller flasks)
- Universal Platform Size : 18" × 18" (Standard)
- Overall Height : Less than 820 mm
- Speed Accuracy : ±1 RPM
- Temperature Range : 20°C ambient to 80°C, (Min. 4°C)
- Temperature Control Accuracy : ±0.1°C
- Temperature Stability : ±0.1°C at 37°C
- Temperature Uniformity : ±0.25°C
- Orbit Dia. : 1 inch
- Motor Type : Solid-state DC brushless motor
- Controller Type : Keypad type controller?
- Capacity : 2.8 L Fernbach Clamp (4 Nos.), 3 L flask Clamp (4 Nos.), 4 L flask clamp (4 Nos.) & 2 L flask clamps (5 Nos.)
- Static Shelf Capacity : up to 4 L Flask
- Drive Shaft Precision : Machined to tolerance of 5 micrometers
- Drive Mechanism : Triple-eccentric counterbalanced drive in cast-iron housing
- Timer Range : 0.1 to 99.9 hours
- Communication Port : RS-232 port for data logging
- Alarm System : Visual and audible alarm system
- Safety Protection : Automatic speed limiting during imbalance condition
- Door Safety : Automatic shaker stop when door is opened
- Excess Vibration Protection : System automatically stops shaker during excessive vibration
- Compatibility : 500 ml and 1 L media bottle clamps, 1.5 ml test tube holder, 20 × 50 ml tubes Rack (Optional)
- Internal Electrical Outlet : Moisture-proof
- Chamber Lighting : 2 Nos. low wattage internal chamber lights
- Clamp Material : Stainless Steel (Single)
- Accessories : 4 × 250 mL clamps, 4 × 500 mL clamps, 2 × 1000 mL clamps, 2 × 2000 mL clamps, Racks for 40 x 15 mL conical tubes (5 Nos.), Racks for 20 x 50 mL tubes (2 Nos.)

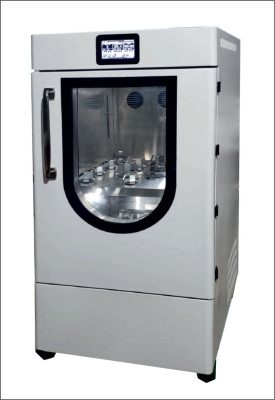

REFRIGERATED SHAKING INCUBATOR
Salient Features:
- Suitable for continuous 24 × 7 operation.
- Compatible with remote monitoring facility.
- Self-correcting PI feedback microprocessor controller for temperature, speed and timer regulation.
- Spill-saving seamless drip pan integrated.
- Stackable with existing Innova 42R Refrigerated Shaker model using suitable stacking kit.
- Separate static incubation rack.
- Drive Mechanism with 9 permanently lubricated ball bearings.
- Stable & vibration-free operation.
- Programmable controller for automated ramping and changes in speed and temperature set points.
- Non-volatile Backup memory with automatic restart after power failure.
- Display and controller mounted on upper part of unit.
- Single knob control facility for operation.
- Alarm for speed deviation (>5 RPM), temperature deviation (>1°C) and timer completion.
- Automatic temperature cut-off upon exceeding high-temperature limit.
- Spill cover and drip pan functioning as liquid reservoir for accidental spills/broken glassware.
- Humidity control, remote alarm, gassing manifold and static culture drawer Feature.
- Included UV germicidal lamp, gassing manifold, nonskid platform, culture drawer and deep-well plate.
- Capability to run 9 standard plates and 3 deep-well plates.
