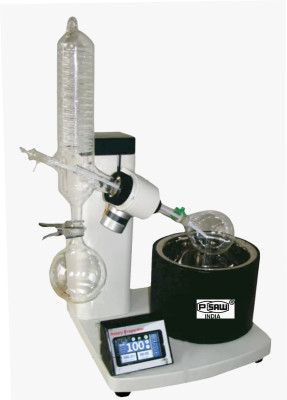

ROTARY EVAPORATER
Model No: PSAW-RE-T43
Salient Features:
- Rotary evaporator, vacuum pump with controller and recirculating chiller.
- Dry Run protection & water bath over heating controlled.
- Auto cut-off mode to avoid over heating situations.
- Equipped with an electric lift. (Automatic lifting of the lask in case of power failure
- Lifting and lowering of the evaporating lask.
- Two-piece cold trap condenser.
- Heating bath temp. & Adjustment ranging
- Automatic evaporation with the Dynamic program to avoid foam to highly ef icient evaporation.
- Vacuum pump speed control integrated with the system.
- Rotation of evaporating lask for a deined time range
- Integrated aeration valve with high-precision pressure sensor.
- All operations managed directly through the vacuum controller.
- Independent Digital displays for vapor temp. & rotation speed.
- All display parameters—water bath temp., vacuum, rotation speed, & vapor temp.
- Separate electronic controls, not combined on single panel.
- Multi functional Combi-clip for easy removal and ixation of evaporating lask.
- Microprocessor-based control system for enhanced precision & stability.
- Digital display showing set temp. & actual temp. simultaneously.
- Rotary evaporator System integrated Vacuum ontroller set with LCD.
- Provision to set and lock the bath temp. to prevent accidental changes.
- Automatic overheat cut-off protection.
- A Solvent Library & Integrated wear part Library
- Integrated solvent database present for setting up dynamic distillation condition.
- CE certifiied design for safety compliance.
Product Information
Technical Specifications:
- Model : PSAW-RE-280
- Water Bath Capacity : 5 Ltr.
- Bath Material : Stainless Steel
- Lift : Automatic
- Speed RPM : 20-280 RPM
- Temp. Range : Ambient to 210°C
- Temp. Accuracy : ±1°C up to 95°C ( ± 4°C up to 210 °C.)
- Measuring Range : 1000-0 mbar
- Automatic aeration : 1400 mbar (Pressure)
- Condenser : Surface Area 1400 cm²
- Display : Microprocessor Based Digital Touch Display set bath temp., rotation speed, Vacuum, etc
- Component Material : Borosilicate 3.3 glass
- Evaporating Flask : 50ml, 100ml, 250ml, 500ml, 1000ml, 2000ml, 5000ml. Flask used on the same joint adapter without additional connections.
- Compatible Flask : Evaporating Flask 500ml- Nos. & Receiving flask 1LT -5 Nos
- Warranty : 5 Year’s
- Protection Class : IP 20
- Power Supply : 220-240V AC, 50-60Hz
- Certification : ISO and CE Certified.
- Included Accessories : Vacuum lines, pump oil, lasks, connectors, seals, cables, ink tank printer with chiller

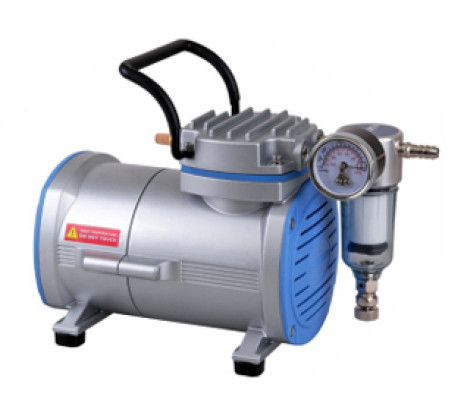

VACUUM PUMP
- Dual stage valve controlled diaphragm Vacuum pump.
- Vacuum range 8mbar and Chemically resistant pump.
- Dual stage diaphragms made of PTFE Material.
- Integrated vacuum controller with Woulff bottle for the trap.
- Visual inspection of diaphragms through glass windows for checking solvent build up & contamination.
- Adjustable Sound Level.
- Sound proofing with enclosed housing to minimize noise and vibrations.
- Optimally suit to work with the Rotavapor.
- Single Stroke Speed-control vacuum pump with low rate of 1.8 m³/h.
- Work on 230V, AC 50/60 Hz.
- CE and ISO Certified.

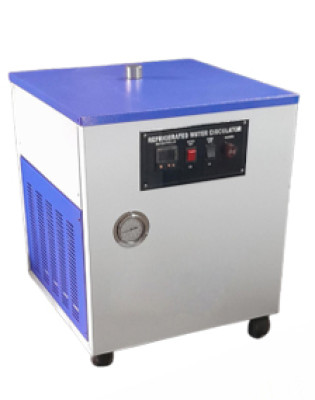

RE - CIRCULATING CHILLER
Salient Features:
- Higher Thermal Fluid volume.
- Digital Interface.
- Compact and Robust Re-circulating Chiller
- Better Pump pressure.
- IP Protection class.
Technical Parameters
- Model : PSAW-RE-200
- Display : Microprocessor Controlled Digital LED with Display.
- Temp. Range : -10 to 40°C
- Temp. constancy : ±0.5°C
- Tank Capacity : 3 Liter
- Coolant : CFC Free
- Cooling Power Rating : 700 W @ (20 °C)
- Pump Capacity : 2.5 Liters/min.
- Noise Level : Noise Free operation
- PC Connectivity : USB connection
- Power Supply : 230V, AC50/60 Hz.
- Warranty : 5 Year’s
- Certified : CE and ISO Certified.
