ROTARY EVAPORATER (280)

Home ROTARY EVAPORATER (280)
PSAW ROTARY EVAPORATER (280)
PSAW ROTARY EVAPORATER (280)
PSAW ROTARY EVAPORATER (280)

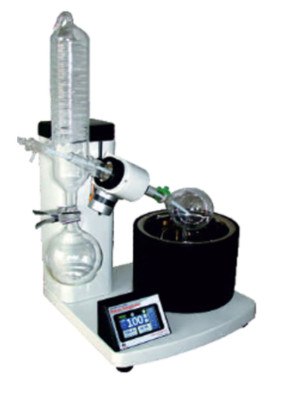

ROTARY EVAPORATER (280)

Model No: PSAW-280

Salient Features:

  • Vertical type Rotary evaporator, Vacuum pump with Controller & recirculating chiller.
  • Dry Run protection & water bath over heating controlled.
  • Automatic power cut-off on exceeding the set temp.
  • Manual Motorized Lifting and lowering of the evaporating flask.
  • Heating bath temp. & Adjustment ranging.
  • Separate knobs for vacuum, bath temp., & rotation control.
  • Solvent Library for easy selection of stored solvents.
  • Two dynamic control knobs for precise adjustment of rotation speed, bath temp., &  vacuum.
  • Standby with residual heat warning above 50 °C.
  • Integrated clamp for evaporating flask support.
  • Ground-free condenser with grease-free threaded connections.
  • PTFE-FKM seal, chemical-resistant, abrasion-free, leak-tight, FDA compliant.
  • Heating bath with safety handles and drain spout.
  • Digital display for continuous monitoring of current values.
  • Plastic sleeve to Cushion vapor tube & prevent sticking or breakage.
  • Lock function to prevent accidental setting changes.
  • Immersion depth up to 155 mm with 20°–80° inclination angle.
  • User-defined evaporation process saving with ramp control.
Enquire Now

Product Information

Technical Parameters:

  • Model   : PSAW-280
  • Speed RPM  :  10-280 RPM
  • Condenser Surface Area  :  1400 cm²
  • Lift type  :  Motorised
  • Display  :  Digital LCD Touch-Screen (Controlled of Vacuum, Speed, & bath temp.)
  • Heating Bath Horizontal :   200mm Dia (Approx.)
  • Heating Bath Capacity :  5L
  • Heating Bath Material  :  Material of Stainless Steel
  • Universal Temp. Range :  Ambient to 210°C
  • Motor  :  DC Brushless Motor
  • Flask Capacity  :  50-5000ml.
  • Control Mode  :  Fixed valve , Auto Control, Step Program Control Mode.
  • Over Temp. Range  :  Cut-off at 5°C above set temp.
  • Secondary Safety Cut-off  :  Over-temp. cut-off protection @ 250°C
  • Connectivity  :  USB & Micro SD interface for software updates & easy data transfer between devices.
  • Certification  :  ISO and CE Certified.
  • Included  Accessories  :  Instructional Manual, Power Cord & Plug, Stand with Condenser Support Clamp (Standard Supply).

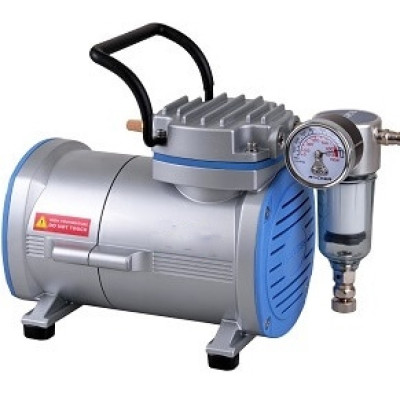

VACUUM PUMP

Technical Parameters:

  • Vacuum pump Stage  : Dual Stage Valve Controlled Diaphragm .
  • Vacuum Suction range  : 7mbar (Chemically resistant pump.)
  • Dual Stage   : Made of ( Diaphragms) PTFE Material.
  • Suitable Suction range : 3 Nos. Rotary Evaporators Same time
  • Sound Level  : Adjustable and Low Range Sound Level.
  • Safety Features  : Oil & Maintenance free.
  • Included    : All Tubings, Fittings and tools Accessories
  • Work on    : 230V, AC 50/60 Hz.
  • Certifications  : CE & ISO Certified.

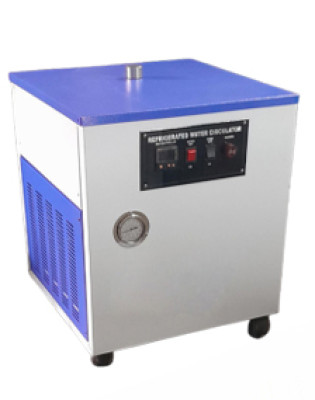

CIRCULATING CHILLER

Technical Parameters:

  • Temp. Range  : -10°C to 20°C
  • Temp Precision : ±2°C
  • Display : Microprocessor with PID Based Temp. Controller
  • Bath Chamber : Made of (Corrosion Resistant) Stainless Steel
  • Chamber Volume : 3 LTR
  • Cooling Capacity : 230-530W ( 0-10°C )
  • Pump flux : 2.5L/min
  • Safety Features : Programmable Setting Mode



Accessories:

  • 250mL   Evaporating Flask - 5 Nos.
  • 500mL   Evaporating Flask - 5 Nos.
  • 100mL   Evaporating Flask -5 Nos.
  • 1000ml. Receiving Flask - 2 Nos.
  • 1000ml. Evaporating Flask  - 2 Nos.
  • Evaporating Flasks Holder Clips  - 10 Nos.
  • 3 KVA Online UPS, 60mins. power backup
  • Table - 1 Nos.
  • Metal Almirah ( 36" x 19" x 78" ) - 1 Nos.
