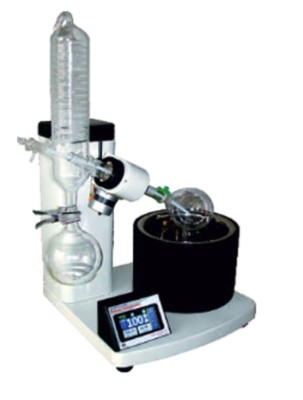

ROTARY EVAPORATER (43VC)

Home ROTARY EVAPORATER (43VC)
ROTARY EVAPORATER (43VC)|PSAW
ROTARY EVAPORATER (43VC)|PSAW
ROTARY EVAPORATER (43VC)|PSAW

ROTARY EVAPORATER (43VC)

Model No: PSAW-43VC

KEY ADVANTAGES:-

  • Efficient evaporation under vacuum.
  • Suitable for heat-sensitive samples.
  • User-friendly digital controls.
  • High chemical resistance.
  • Safe and reliable operation.
  • Integrated aeration valve with precision pressure sensor.
  • Programmable timer for Automatic process termination.
  • Chemical-resistant seals for extended service life.
  • Stress-relieved borosilicate glass construction.
  • Vacuum pump and rotary evaporator same brand make.
  • Durable, Compact, rugged designed & Suitable for use in lab.
  • Protection against heat, Electrical Shock, & operational hazards.
  • Vertical condenser with motorized jack lift and automatic lift on power failure.
  • Digital Display for showing Temperature, Rotation Speed and vacuum pressure.
  • Fast solvent recovery during crude oil analysis.
  • Suitable for water and oil medium.

Enquire Now

Product Information

TECHNICAL PARAMETERS

  • System : Complete Rotary Vacuum Evaporator with  PTFE Diaphragm Vacuum pump, Vacuum Controller, Chiller, Glassware, & Accessories.
  • Display : Touch Screen Display for Bath temp., RPM, & Vacuum
  • Lift : Motorized Lift with Automatic lift-up During power failure.
  • Bath Material : SS Bath with PTFE Coating( Set & Actual temp.display)
  • Heating Range Water : Ambient to 99°C
  • Heating Oil  : Ambient to 180°C
  • Conditions : 0–50°C Ambient temp. (up to 95% RH ) Non-Condensing.
  • Display Control : Microprocessor with PID Based Controller
  • Temp.  Accuracy : ±2°C
  • Heating Bath Capacity : 5 LTR.
  • Condenser Type : Vertical Type, Cooling Area =1400 cm²
  • Rotation Speed : 10–280 RPM  (1 RPM Resolution.)
  • Flask Compatibility : 50, 100, 250, 500 & 1000mL Flasks 29/32 Joint Adapter.
  • Vacuum Controller : Integrated Pressure Sensor, Aeration Valve, & timer function
  • Safety  : Dry-run, Over-temp. Electrical protection, Safety cut-off Switch
  • Protection Class : Ip20
  • Power Supply : 220 ±10V AC, 50Hz (±1Hz), Single Phase.
  • Accessories : Evaporater Control Stand, Uncoated Glassware Set, Sample Flask 250, 500, 1000mL, Receiving Flask 1000ml., -4 Nos. Clip, Vacuum Gauge

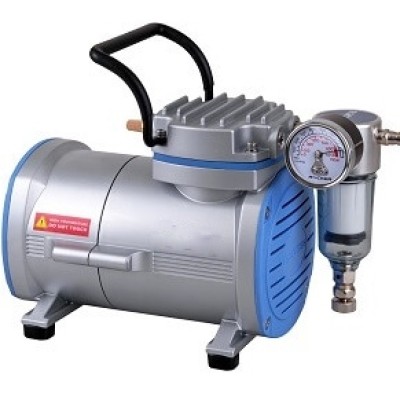

VACUUM PUMP:

  • Vacuum Pump : Oil-Free, Chemical-resistant PTFE Diaphragm pump (Robust Design).
  • Operation : Low Vibration Operation
  • Ultimate Vacuum : >=7 mbar
  • Pumping Speed : 1.2 m³/hr

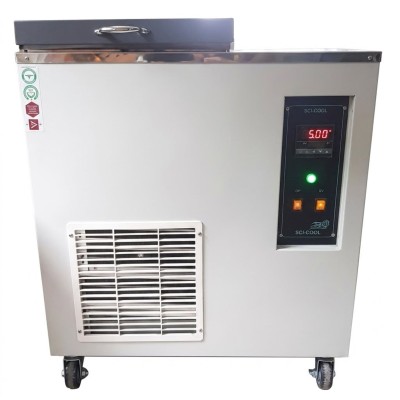

CHILLER:

  • Temp. range : -10°C to 25°C
  • Temp. Resolution : ± 1°C
  • Cooling Capacity  : >=250W @ 10°C
  • Tank Capacity : 5 LTR
  • Display : LED Display (set & actural)
  • Included : Instructional Manual, Drawings, & Essential Spares.
  • Evaporation Flasks : 1000 mL Receiving Flasks ( 4 Nos.), Clips, Vacuum gauge, Tubing
  • Warranty : 3 Year’s.
