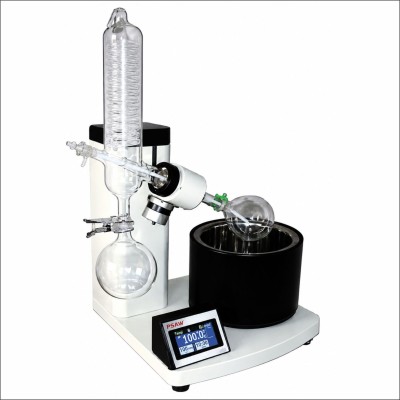

ROTARY EVAPORATER

Model No: PSAW-280

TECHNICAL PARAMETERS:

  • Model : PSAW-280 ROTARY EVAPORATER
  • Lift type : Manually and motorized lift
  • Cooling type : Vertical Borosilicate Glass Condenser with Double Spiral Glass coil
  • Temp. range : Ambient to 99 °C with ±1 K  Accuracy (Suitable For water & Oil Heating)
  • Cooling Surface Area : 1500 cm²
  • Heating Capacity : 1400 W
  • Heating Bath Capacity : 5000ml.
  • Heating bath Inner Size : 225 mm Diameter
  • Heating Bath material : High-Grade Electro-polished  Stainless Steel (SS 316L )
  • Speed Setting : 20 – 290 RPM
  • Heating Bath Display : Digital LED Display both set & Actual temp.
  • Speed Setting : Manual with Control knobs
  • Vacuum Seal : Chemically resistant PTFE Composite Vacuum Seal
  • Receiving Flask Capacity : 1000ml. Round type receiving flask
  • Over Heating protection : Adjustable Safety temp. limit with Automatic over heat cut-off protection
  • Protection Class : IP 20
  • Locking Function : Mechanical knob lock ( Software panel lock ) to prevent un intentional parameter Adjustments
  • Power Supply : 220 – 240 V, 50/60 Hz., Single Phase
  • Warranty : 3 Year’s
Enquire Now

Product Information

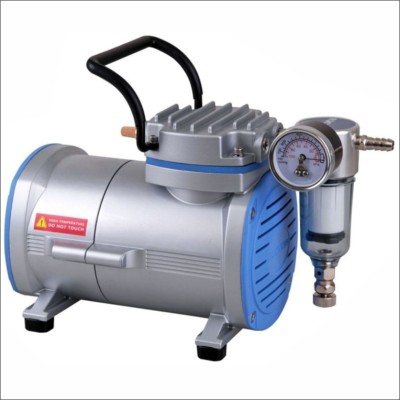

VACUUM PUMP (PSAW-280)

TECHNICAL PARAMETERS:

  • Suction Capacity : 16 L/min ( 1.0 m³/h )
  • Ultimate Pressure : 9mbar
  • Controller : Digital vacuum Controlled measurement & Control range from 1100 to 1 mbar
  • Power Supply : 220 – 240 V, 50/60 Hz

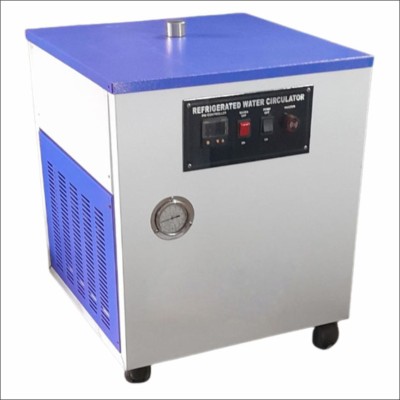

RE-CIRCULATING CHILLER (PSAW-280)

TECHNICAL PARAMETERS:

  • Model : Bench top Recirculating Chiller with Digital LED Display
  • Temp. Range : -10 °C to ambient to +40°C
  • Chiller Temp. Stability : ±0.5 °C  ( preferably ±0.1 °C)
  • Chiller Volume Capacity : 3Ltr
  • Pressure Range : >0.3 bar
  • Cooling Capacity : 140W @ -10C
  • Pump Flow Capacity : >15 L/min.
  • Warranty : 3 Year’s
  • Optional Accessories : Suitable Hoses with thermal insulation ( Chiller with Condenser Connection ) 2 Nos. Each, 500mL & 1000 mL Evaporation Flasks, 2 Nos. 1000 mL Safety-coated receiving flasks, Safety-Coated Condenser Glassware For Heating bath, & PTFE Vacuum Seals. Vacuum Pump: All wetted parts, including diaphragms, pump heads & valves, Made of PTFE, FFKM,  Chemical-Resistant Fluoropolymer Material.
