ROTARY EVAPORATOR (PSAW-280)

Home ROTARY EVAPORATOR (PSAW-280)
ROTARY EVAPORATOR (PSAW-280)|PSAW
ROTARY EVAPORATOR (PSAW-280)|PSAW
ROTARY EVAPORATOR (PSAW-280)|PSAW

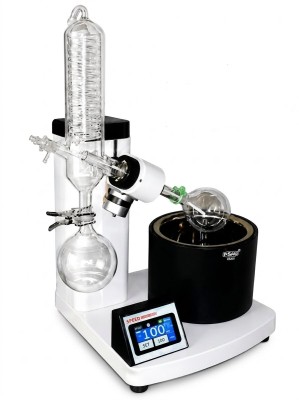

ROTARY EVAPORATOR (PSAW-280)

Model No: PSAW-280

SALIENT FEATURES:

  • Vertical Rotary Evaporator with Vacuum pump Controller & recirculating chiller.
  • Dry Run protection & water bath over heating controlled.
  • End stop positioned with push button with stroke distance 140mm.
  • Locking mechanism for vapour tube with Colour indicator.
  • Possible to using device in volume based 100% distillation.
  • IR Communicated with Heat bath which Auto power off.
  • Locking Function in Heating Bath for Avoid accidental charge of Settings.
  • User-defined evaporation process saving with ramp control.
  • Fully Integrated Vacuum Controller with intelligent process automation for precise vacuum regulation.
  • CW & CCW Rotation Programs Interval Mode enhanced solvent evaporation faster powder drying.
  • Integrated Solvent Library with 40+ pre-programmed solvents.
  • Expandable with user-defined entries & Storage up to 10 Customized programs.
  • Automatic Safety Venting when system pressure exceeds 1100mbar, ensuring safe operation.
  • Ambient pressure to 2 mbar for Accurate process Control Across diverse applications.
  • Dedicated One-Touch Vent Button for rapid & Controlled chamber aeration.
  • Built-in Vacuum Pump Cleaning Function to improve pump performance, Extend service life, & reduce maintenance.
  • User-Friendly Digital Interface for easy monitoring and adjustment of all operating parameters.
  • Optimized for Reproducible Distillation and Solvent Recovery with high process reliability and safety.
Enquire Now

Product Information

DIGITAL CONTROL : Intuitive digital display for precise speed & temperature control
WIDE SPEED RANGE : Variable speed from 20 to 280 RPM
PRECISE HEATING : Water/Oil bath with accurate temperature control up to 180°C
HIGH EFFICIENCY : Large condenser surface ensures excellent evaporation efficiency
SAFE & RELIABLE : Overheat protection, fuse protection & stable operation
VERSATILE APPLICATION : Ideal for distillation, solvent recovery, concentration & laboratory processes



TECHNICAL PARAMETERS:

Parameter

Specification

Model

: PSAW-280

Speed RPM

: 5-280 RPM

Condenser Surface Area

: 1500 cm²

Lift Type

: Electronic (Automatic) Lift of flask in case of Power Failure.

Bath Material

: Stainless Steel

Display

: Digital TFT Graphical Display (Controlled of Vacuum, Speed, & Bath Temp.)

Heating Bath Capacity

: 4 L

Heating Temp. Range

: RT to 180°C

Safety Temp. Circuit

: Ambient to 50-190°C (Dry Run Protection)

Motor

: DC Brushless Motor

Flask Capacity

: 50-3000 ml

Certification

: ISO and CE Certified

Included Accessories

: Instructional Manual, Warranty Card, Power Cord & Plug.

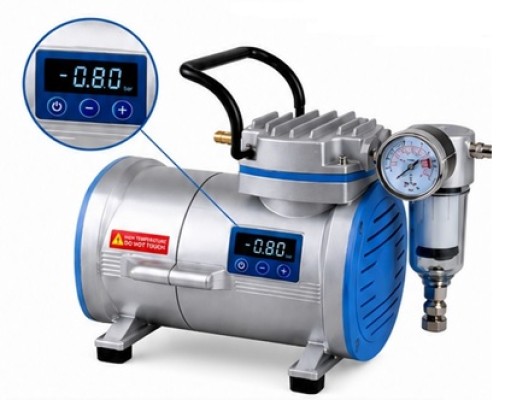

VACUUM PUMP
PSAW-280

TECHNICAL PARAMETERS

  • Detection Range : Automatic Speed Controlled Boiling Point Detection
  • Vacuum Pump Flow Rating: 1.3 m³/h.
  • Vacuum Leveling Range : <2mbar
  • Display : Digital (Adjustable Settings)
  • Power Supply : 230V, AC 50/60 Hz.
  • Certified : CE, ISO Certified.
  • Accessories : Mechanical Silencer
  • Warranty : 3 year's

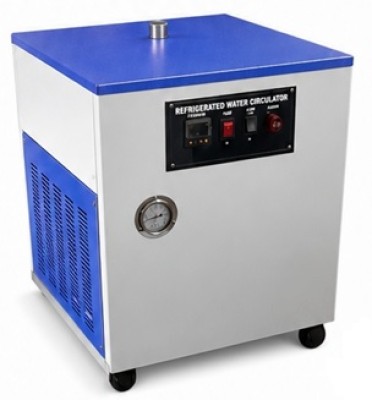

RE-CIRULATING CHILLER
PSAW-280

TECHNICAL PARAMETERS:

  • Temp. Range : -10°C to RT
  • Cooling Capacity : 10°C @ 350W
  • Refrigerant : CFC Free
  • Bath Volume : 3 Ltr
  • Display : LED Display with Water level Indicator.
  • Flow Rating : 18 Ltr/min
  • Power Supply : 230V, AC 50/60 Hz.
  • Certified : CE, ISO Certified.
  • Warranty : 3 year's
