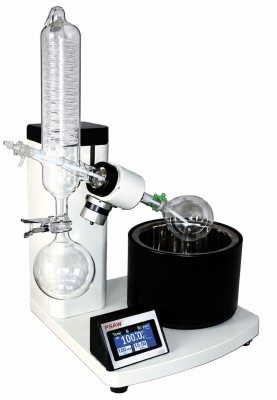

Product Information

Technical Specifications:

• Bath Capacity : 4.0–6.0 Litres
• Lift Mechanism : Motorized
• Rotation Speed : 10-280 RPM
• Construction : Rust Free Metal Body
• Heating Bath Material : Stainless Steel (V4A )
• Component Material : Borosilicate 3.3 glass
• Cooling Surface Area : 1400 cm²/H
• Condenser Type : Vertical Condenser
• Display : 5” Digital LCD Display
• Bath Temperature : up to 210°C
• Temperature Accuracy : ± 1°C
• Controller : Microprocessor based bath temperature controller
• Drive Motor : DC Motor
• Flask Compatibility : Evaporating Flask (5L) with adapter (on the same joint)
• Accessories : Evaporating Flask (1 L) & Receiving Flask (1 L), 3 PTFE seal
• Protection Class : IP 20, IP 42 (Operating Panel), IP 67 (Heating Bath Cable)
• Certification : CE & ISO 9001 Certified.
• Safety Features : Automatic Over Temperature Cut-off (+5°C)



VACUUM CONTROLLER

• Type : Digital
• Pressure Range : 0–1020 mbar
• Vacuum Source : Compatible with House Vacuum & External Vacuum Pumps
• Connection : Suitable Tube Connection

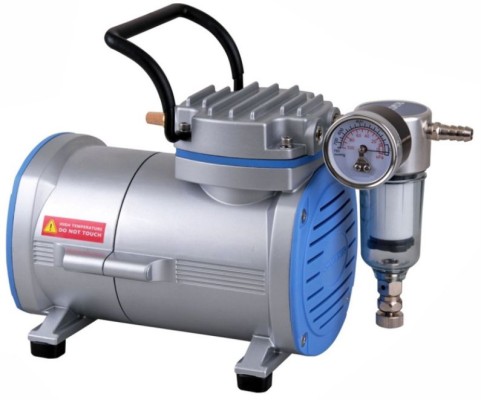

VACUUM PUMP

Technical Parameters:

• Pump Type :  Chemical Resistant Diaphragm Pump
• Stages : Two Stage
• Diaphragm Material : PTFE membrane
• Ultimate Vacuum : ?10 mbar
• Pumping Capacity : 2.0 m³/hr
• Certifications : ISO & CE Certified
• Solvent Resistance    : Resistant to Organic Solvents & Acid Vapours

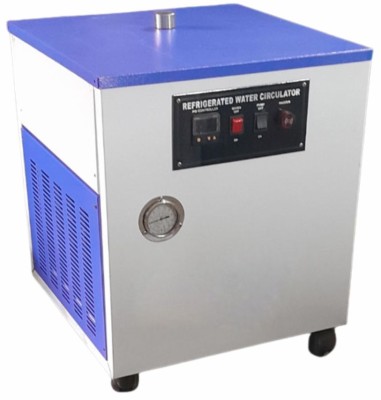

RE - CIRCULATING CHILLER

Technical Parameters:

• Temperature Range : -20°C to +20°C
• Optional Temperature : up to +80°C
• Cooling Capacity : 600 W (@10°C), 350 W (@0°C), 120 W (@-20°C)
• Temperature Accuracy : ±2°C
• Display : LCD
• Chamber Volume : 8 Litres Approx.
• Flow Rate : ?6 L/min
• Sensor : Pt100
• Refrigerant System : CFC-Free R404A
• Protection Class : Ip20
• Noise Level : ?55 dB
• Power Supply : AC 220V, 50 Hz
• Compatibility : 2L Rotary Evaporators (2 set)
