Product Information
Technical Parameters:
- Model : PSAW-300
- Bath Material : Stainless Steel
- Speed RPM : 10-310 RPM
- Vacuum Seal : 2 Nos. Teflon® ( Viton Double Seal )
- Evaporation Capacity : 20ml. /min.
- Temp. Range : Ambient to 210°C
- Function : Manual Jack ( Stepless Motor)
- Motor : DC Brushless Motor
- Sample Flask : 1 L Pear Style TS 29/38 ( Rotary joint with 2 Nos. )
- Receiving Flask : 1 L Round Style ( 2 Nos. )
- Condenser : Vertical Dual spiral glass coil Condenser
- Display : Microprocessor Based Colour TFT LCD Dial Digital Display bath temp., rotation speed, Vacuum, etc
- Vacuum Range : 0-760mm hg ( Torr), 0-1000 hpa (mbar)
- Vacuum Measuring : 0-800mmhg ( Torr ), 0-1050hpa (mbar)
- Vacuum Temp, range : 0-100°C
- Control Mode : Fixed valve , Auto Control, Step Program Control Mode.
- Gradient Control : 1-1000min.
- Step Program Control : 0-1000min.
- Unit of Pressure : mmhg, Torr, hpa, kPa, mbar
- Display Items : Operation Mode with Status,, Measured, Setting Pressure, Rotation Speed, Bath temp.
- Certification : ISO and CE Certified.
- Included Accessories : Instructional Manual, Power Cord & Plug.

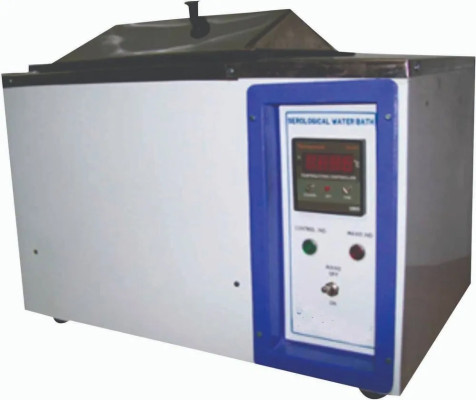

Water bath
- Capacity : 4.5L
- Temp. control range : Ambient temp. +50°C to 90°C
- Display : Microprocessor based Digital Display
- Features : Digital Display for Actual and Set temp.

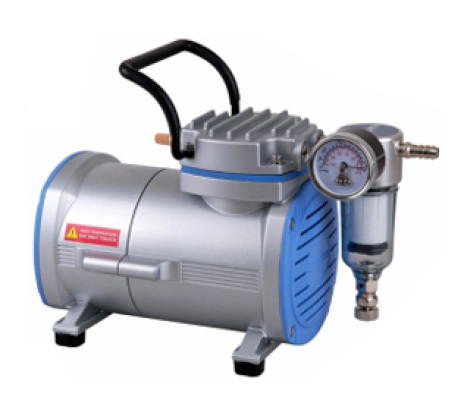

Vaccum Pump:
- Dual stage valve controlled diaphragm Vacuum pump.
- Vacuum range <10mbar & Chemically resistant pump.
- Dual stage diaphragms made of (Corrosion resistant ) PTFE Material.
- In Built motor malfunction detector safety feature.
- Visual inspection of diaphragms through glass windows for checking solvent build-up & contamination.
- Noise Level Reducer .
- Soundprooing with enclosed housing to minimize noise & vibrations.
- Optimally suit to work with the Rotavapor.
- Single Stroke Suction Flow rating 20-30L/min.
- Work on 230V, AC 50/60 Hz.
- CE and ISO Certified.
Re - Circulating Chiller:
Salient features
- Higher Thermal Fluid volume.
- Digital Interface.
- Compact and Robust Re-circulating Chiller
- Better Pump pressure.
- Refrigeration Unit Air cooled.
Technical Parameters:
- Model : PSAW-RE-200
- Display : Microprocessor Controlled Digital LED Display.
- Temp. Range : -10°C to Ambient Temp. Range
- Tank Capacity : 4-5 Liter
- Coolant : CFC Free
- Noise Level : Noise Free operation
- Power Supply : 220/230V, AC 50/60 Hz.
- Warranty : 1 Year
- Certi ied : CE & ISO Certi ied.

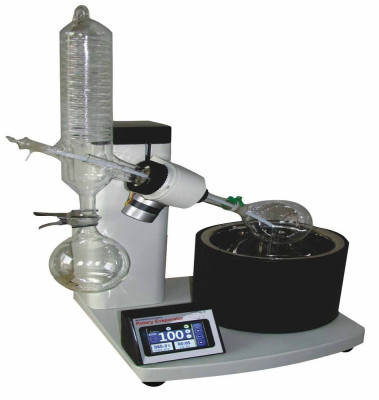

ROTARY EVAPORATER
Salient Features:
- Rotary evaporator, vacuum pump with controller and recirculating chiller.
- Dry Run protection & water bath over heating controlled.
- Auto cut-off mode to avoid over heating situations.
- Lifting and lowering of the evaporating flask.
- Two-piece cold trap condenser.
- Clock wise & Anti clock wise Rotate motion.
- Heating bath temp. & Adjustment ranging
- Automatic evaporation with the Dynamic program to avoid foam to highly efficient evaporation.
- Power Control with Inverter vacuum pump system.
- Rotation of evaporating flask for a defined time range
- Integrated aeration valve with high-precision pressure sensor.
- CE certified design for safety compliance.
