SEMI AUTOMATED MICROTOME|PSAW

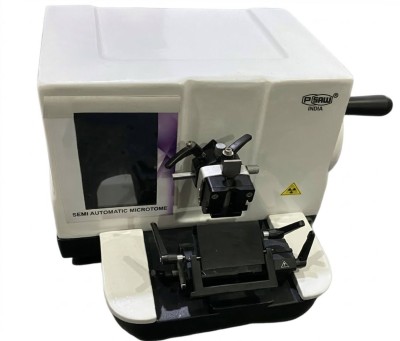

SEMI AUTOMATED MICROTOME

Model No: PSAW-RM-15
  • Engineered for precision, reliability and operator comfort, the PSAW-RM-15 Semi Automated Microtome delivers consistent, high-quality sections with advanced automation, safety and ergonomic control.

KEY FEATURES

  • Low-maintenance, backlash-free precision micrometer feed system with step motor.
  • Feed and Stroke mechanism based on precision cross-roller bearings.
  • Two independent handwheel locking systems for enhanced operator safety.
  • Adjustable force balancing system to compensate different specimen weights and prevent specimen head drop.
  • User friendly controla panel wfor ergonomic operation.
  • Digital Display shows trimming thickness, specimen retraction status, handwheel lock status, section counter and thickness totalizer.
  • Large anti-static section waste tray for waste.
  • Horizontal & vertical orientation ±8° with calibrated controls and zero-position indicators.
  • Blade holder suitable for high & low profile blades with safety guard, blade ejector and three-position lateral displacement.
Enquire Now

Product Information

TECHNICAL PARAMETERS:

  • Equipment Type : Semi-Motorized Rotary Microtome
  • Feed Mechanism : Horizontal feed
  • Stroke Mechanism : vertical stroke
  • Trimming Thickness : 1-600 µm
  • Trimming Increment : 1 μm (1-10), 2 μm (10-20), 5 µm (20-50), 10 µm (50-100), 50 µm (100-600)
  • Section Thickness : 0.5-100 µm
  • Section Increment : 0.5 µm (0.5-5), 1 μm (5-20), 5 µm (20-60), 10 µm (60-100)
  • Horizontal Feed : 24 ±1 mm, step motor driven
  • Vertical Stroke : 70 ±1 mm
  • Electronic Feed Speed : Slow: 300 µm/s, Fast: 800 µm/s, Homing: 1800 μm/s
  • Handwheel Operation : Smooth-running with both rocking mode and conventional full-rotation sectioning (manual)
  • Control Panel : Separate ergonomic control panel with adjustable inclination angle
  • Memory Function : Independent memory for trimming and section thickness settings
  • Specimen Retraction : Programmable specimen retraction with ON/OFF function
  • Manual Retraction : 5–100 µm (Increments - 5µm) with ON/OFF selection
  • Motorized Retraction : Automatic, speed-dependent specimen retraction
  • Rapid Trimming : Dedicated rocking mode for rapid trimming operation
  • Motorized Coarse Feed : Control panel-operated coarse feed with continuous and step modes in two selectable speeds
  • Manual Coarse Feed : Ergonomic coarse feed wheel
  • Feed Direction : User-selectable clockwise/anticlockwise
  • Travel Indicators : Visual and audible indication of remaining feed and travel limits
  • Memo Position : User-programmable specimen memo position
  • Fast Homing : Automatic specimen head return within 13 ±2 seconds.
  • Working Surface : Large flat top surface for accessories
  • Storage Tray : Removable top tray for storage of sectioning tools
  • Clamp System : Quick-release specimen clamp system
  • Cassette Clamp : Universal cassette clamp (Horizontal & Vertical)
  • Clamps compatibility : 39.8 x 28 mm to 40.9 x 28 mm cassettes
  • Blade Holder : Two-in-one blade holder
  • Power Supply : 220-240 V AC, 50/60 Hz
  • Regulatory Approval : USFDA IVD approved
  • Warranty : 5 Years



Safety Features:

  • Handwheel lock, safety blade guard, blade ejector, visual & audible alarms



Accessories:

  • Universal cassette clamp, blade holder, waste tray, storage tray, toolkit, dust and power cord manual
