Product Information
TECHNICAL PARAMETERS:
Model
PSAW-RM-15
Section Thickness Range
0.5-100µm (Adjustable increments 0.5µm)
0.5-5µm (Adjustable increments 0.5µm)
5-20µm (Adjustable increments 1µm)
20-60µm (Adjustable increments 5µm)
60-100µm (Adjustable increments 10μm)
Specimen Retraction
5-100µm (5µm increments; Can Turned off.)
Horizontal Specimen Feed Size
24mm (precision stepper motor drive.)
Vertical Stroke Length
70mm
Coarse Feed Speed
Slow Forward and backward coarse feed speed: 300 µm/s
Fast Forward Coarse Feed Speed: 800 µm/s
Fast backward Coarse Feed Speed: 1800 µm/s
Accessories
5 packs each high & low-profile disposable blades., UPS etc.
Certification
US FDA, CE Certified.
Documentation
IQ, OQ, PQ
Warranty
2 Year's
STANDARD ACCESSORIES:
- High-profile Disposable Blades (5 packs)
- Low-profile Disposable Blades (5 packs)
- Universal Cassette Clamp
- Blade Holder
- UPS
- Tool Kit & Cleaning Accessories

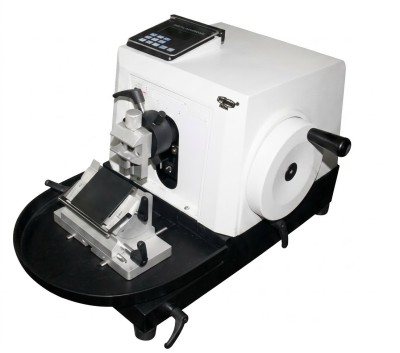

SEMI AUTOMATIC ROTARY MICROTOME
SALIENT FEATURES:
- 1. Vibration-free Microtome rigid construction for precise & consistent sectioning.
- 2. High-precision vertical & Horizontal Cross-roller Bearing Mechanism for smooth & accurate sectioning.
- 3. Precision Force-balance (Counter-balance) System.
- 4. Ergonomic control panel, mountable on either side.
- 5. Spring-Assisted blade ejection mechanism.
- 6. Emergency Stop knob, Handwheel lock, & blade guard.
- 7. Built-in Section Counter with Total Section Thickness Indication.
- 8. Sectioning Manual & Rocking Mode to Reduce repetitive motion disorders (RMDs).
- 9. Upgradeable to Electrically Cooled Universal Cassette Clamp.
- 10. Force-balanced handwheel with Automatic Centering in Semi-Automatic Mode.
- 11. Separate Control panel for Convenient operation.
- 12. Knob-Controlled Speed Adjustment on the External Control panel.
- 13. Ergonomic coarse Feed Handwheel selectable Counter-Clockwise rotation.
