Product Information
SPECIFICATIONS:-

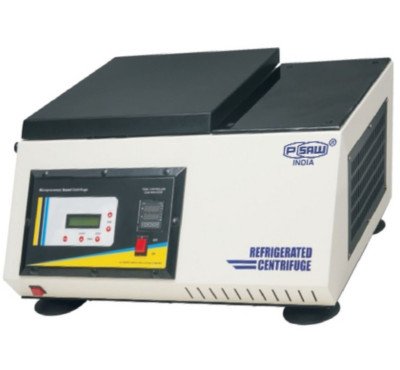

- High speed, High capacity bench top, Refrigerated Centrifuge Machine, Microprocessor based.
- Heavy duty C.R.C. construction finished with powder coating.
- Optional Indicator at end of run, Included Automatic lid opening.
- Stainless Steel centrifugal bowl for extra protection and easy cleaning.
- Fitted with well balanced brushless motor with electronic drive. Digital timer 10 Sec -99hr/59 minutes.
- 4 lines, 20 characters. Visible Backlit LCD Display for set time, run time, set & run rpm, rcf and rotor identification.
- Bucket Lid operate in safe manner without spring clips and Metal Components.
- Centrifuge Swing out Rotor capable of Spinning sample 16000xg.
- 50 programmes can be stored in memory and automatic rotor identification on display.
- Additional electronic Auto lid lock who does not allow to open lid when machine is running and no tool in <5Sec.
- One Touch Operation with Pre Saved Protocols.
- Dynamic brake (automatic) and imbalance detector are provided.
- Full Flashing and Adjustable Audible Signal and Fast spin option.
- Selection of 3 acceleration + 4 deceleration profile.
- Pre Cooling Function with Direct button.
- CFC Free Refrigeration.
- 3 Direct Programmable Speed Regulator from 2000 to 17800 in interval (100 RPM).
- 96 Additional Programs accessible via folder.
- Supply completed 15ml Adapter, instruction manual, cord & plug to work on 220V, 50Hz A.C.
- CE and ISO Certified.
- Machine comes without rotor heads.
Capacity Type of Rotor Type of Container Speed (RPM) RCF ‘g’
24x1.5/2ml Angulur Plastic 17800 30200
6 x 50ml Angulur Plastic 9500 12000
8 x 50ml Angulur Plastic 5600 5014
8 x 50ml Swing out Rotor Plastic 4000 3300
4 x 2 Deep well Micro Plates
30 Spin Columns 14000 22000
TECHNICAL DATA:-Max. Speed : 17,800RPM
Max. RCF : 30,000x‘g’
Temp. Range : -10°C to 40°C
Max. Capacity : 4 x 145ml.
Time Range : 10 Sec-99 Hrs./59min.
Noise Level : 56dba
W x D x H : 400 x 500 x 455mm
Warranty : 2 Year’s
SMALL BENCHTOP CENTRIFUGE (PREMIUM MODEL, BRUSHLESS)
SPECIAL FEATURES:-
- Rotor Head are manufactured from speed grade aluminum which can withstand high Speed.
- Very stable
- No vibrations
- Motor fitted on anti vibration springs supported with rubber covering from inside and out side.
