Product Information
ILLUMINATION & MECHANICS:
- Light Source Array: Dual top and bottom LED illumination lamps
- Working Clearance Distance: Large 100 mm fixed clearance window below objective.
- Diopter Compensation Scale: Dual eye tube adjustment supporting a range of ±5 diopters.
- Interpupillary Distance Adjuster: Flexible lateral slider width tracking from 55 mm to 75 mm.
- Stage Type Base: Heavy-duty standard stage plate built into a stable transmitted illumination base frame.

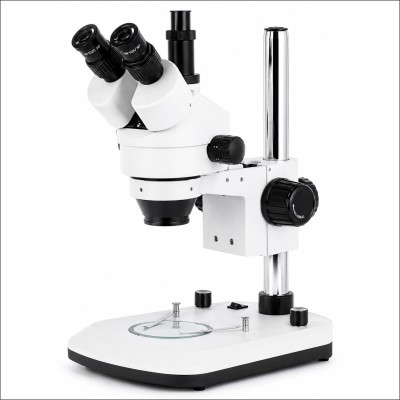

STEREO ZOOM TRINOCULAR MICROSCOPE
OPTICAL & ZOOM SPECIFICATIONS:
- Optical Body Assembly: Dedicated Trinocular head profile configured for simultaneous observation & Digital camera attachment.
- Head Inclination Angle: 45° viewing slant to ensure operator ergonomics during long working hours.
- Zoom Ratio Index: 1:7 High-Performance Zoom ratio.
- Objective Zoom Range: Continuously variable from 0.65X to 4.5X.
- Total Magnification Limit: Standard 6.5X to 45X tracking scaling (expandable using optional auxiliary lenses).
- Eyepieces Frame: SWF10X/22 mm high-eyepoint, super-widefield eye optics.
- Parfocality Alignment: One-time initial focus holds sharp image clarity across all zoom magnification shifts
