Product Information
TECHNICAL PARAMETER:-
Model
PSAW-2401
Capacity
96 x 0.2 ml
Temperature Range
0-105 °C
Heating Rate
4.5 °C/s
Cooling Rate
4 °C/s
Uniformity
<±0.2°C
Accuracy
<±0.1°C
Display Resolution
0.1°C
Temperature Control
Block / Tube
Ramping Rate Adjustable
0.1-4.5°C
Gradient Temp. Range
30-105°C
Gradient Spread
1-30°C
Hot Lid Temperature
30-115°C
Hot Lid Height Adjustable
Steps-less Adjustable
Number of Programs
10000+(USB Flash)
Max . no. of Step
30
Max. No. of Cycle
200
Time Increment/Decrement
1 Sec to 600Sec.
Temp. Increment/Decrement
0.1-10°C
Pause Function
Yes
Auto Data Protection
Yes
Hold at 4 °C
Forever
Touchdown Function
Yes
Long PCR Function
Yes
Language
English
Computer Software
Yes
Mobile Phone APP
Android
LCD
8", 800 x 600 pixel, TFT
Communication
USB2.0, LAN, Wi-fi
Dimensions (L x W x H)
390mm*270mm* 255mm
Weight
9Kg
Power Supply
100-240VAC, 50/60Hz, 600W
Thermal Cycler
THERMAL CYCLER

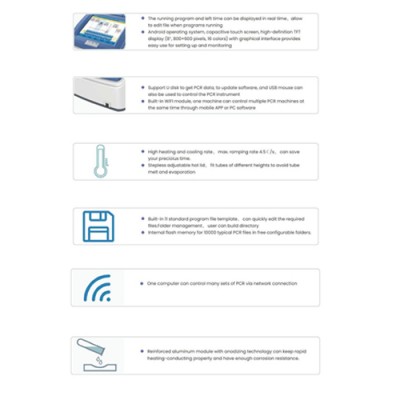

ADVANTAGE:-
Thermal cycler uses long service life pePSAWier. Its max. ramping rate is 4.5 C/s and cycle times is more than 1000,000. The product com- bines a variety of advanced technologies:
Android system: Color capacitive touch screen; several block as options; buiPSAW-in WIFI module, mobile APP and PC software control function; email notification function; big storage capacity and etc. All above functions allow PCR's excellent Performance and meet higher experiment's need.
