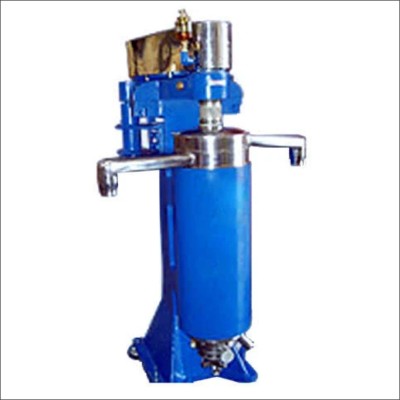

Tubular Centrifuge
Model No: PSAW-RC-40
Salient Features:
- Hygienic finish with electro-polished all parts machine.
- Motor with Tools and Spares.
- High-strength special SS using centrifugal casting to the highest standard Bowl.
- Open-door type construction for easy removal and fixing of bowl.
Product Information
Technical Specifications:
- Machine Type : Tubular Bowl Centrifuge
- Bowl Type : Clarifier / Separator type
- Bowl Speed : 15,000 RPM
- Bowl Capacity : 6 Litres
- Bowl Dirt Holding Capacity : 3.5 Litres
- Centrifugal Force : 13,000 × g
- Drive Motor : 2 HP, non-FL.P. motor
- Drive : Fixed-speed drive
- Frame & Non-Contact Parts Material : Carbon Steel
- Cover Material : Stainless Steel 316
- Bowl Material : Stainless steel (Special high-strength)
- Drag Body Material : Stainless Steel 316
- Feed Nozzle Material : Stainless Steel 316
- Gasket : Suitable chemical-resistant gasket
- Hood Type : Fibre Glass (FRP) for reduction of operating noise
- O-Rings Type : Viton
- Cooling Coil Material : SS 316
- Bearing Assembly : Self-lubricated, grease-packed bearing assembly
- Accessories : Spare parts & tools (1 Set), Instruction Manual & Certificates, Test Report
- Bowl Weight : Approx. 17 kg
- Warranty : 2 years
