Soil Ecology & Invertebrate Zoology Apparatus Model Ref: TF-ECO01Tulgren Funnel
Precision Tulgren Funnel Apparatus Featuring Smooth Metallic Funnel Cone, Removable Wire Mesh Sieve, Adjustable Overhead Lamp Hood, and Specimen Receiver Vessel for Soil Micro-Arthropod Extraction.
Removable MeshStainless / Brass SieveAdjustable HoodHeat Gradient ControlSmooth ConeZero-Snag MigrationSingle / BankBenchtop & Multi-UnitWhat is a Tulgren Funnel?
A Tulgren Funnel (also known as a Tullgren funnel or Berlese-Tullgren soil extractor) is an ecological laboratory instrument used to separate small, mobile soil invertebrates—such as springtails, mites, insect larvae, and micro-arthropods—from soil or leaf-litter samples. An overhead lamp warms and dries the upper layer of the sample, prompting moisture-seeking organisms to migrate downward through a wire mesh sieve and fall into a collection beaker below.
1. Detailed Product Overview
Soil Biodiversity & Ecological Sampling
The Tulgren Funnel is a core instrument for teaching soil ecology, forest litter decomposition, and invertebrate diversity in school and university biology laboratories. By harnessing natural avoidance of heat and dryness, this Tullgren funnel apparatus helps students isolate delicate soil fauna cleanly for microscopic identification.
Controlled Thermal & Light Gradient
Fitted with a ventilated reflector hood and adjustable support clamp, each Berlese Tullgren soil extractor creates a gradual downward temperature and desiccation gradient. Adjusting lamp height lets researchers regulate drying speed according to sample moisture and humus density.
Low-Friction Cone & Mesh Sieve
Constructed with steep, smooth interior funnel walls and a removable corrosion-resistant wire mesh sieve, this soil micro arthropod extractor retains coarse soil particles above while guiding migrating organisms directly into the preservative jar.
Institutional & Field Reliability
Built on a stable weighted support stand with durable hardware, our ecology lab equipment supports multi-hour extraction runs in academic labs, agricultural institutes, and environmental research centers.
2. Extraction Protocol & Technical Specifications
01Load Soil or Litter Sample
Place fresh leaf litter or loose topsoil onto the removable wire mesh sieve inside the upper funnel cone without packing it tightly.
02Prepare Collection Vessel
Place a glass beaker or specimen jar containing 70% ethanol (or moistened substrate for live study) beneath the funnel stem.
03Activate Heat & Light Source
Position the overhead lamp hood at an appropriate height to establish a gentle warming gradient across the top sample layer.
04Harvest Extracted Fauna
After the extraction cycle completes, remove the collection jar and examine extracted micro-arthropods under a stereo microscope.
Parameter Specification Details Product Name Tulgren Funnel (Soil Micro-Arthropod Extractor) Funnel Cone Smooth Spun Aluminum / Powder-Coated Metal / Polymer Mesh Sieve Removable Stainless Steel / Brass Wire Mesh Disc Lamp Assembly Ventilated Reflector Hood with Adjustable Clamp Mount Support Stand Heavy Cast-Iron Base with Vertical Rod & Ring/Clamp Receiver Vessel Borosilicate Glass Beaker / Specimen Jar Configurations Single Benchtop Unit & Multi-Funnel Battery Racks Direct Manufacturer Quotation & Bulk Orders
Contact for institutional ecology lab pricing, multi-funnel rack options, and global export catalogues.
3. Key Features & Design Advantages
Steep Smooth Cone Wall
Minimizes ledges where migrating arthropods could pause or get trapped before reaching the collection jar.
Removable Sieve Basket
Allows quick loading of soil samples, easy residue disposal, and thorough cleaning between experiments.
Adjustable Lamp Height
Lets instructors or researchers tune heat intensity for wet or dry soil samples without scorching specimens.
Weighted Stand Stability
Heavy base keeps the funnel and lamp assembly steady during continuous multi-hour laboratory runs.
4. Frequently Asked Questions (FAQs)
Q1: How does a Tulgren funnel separate organisms from soil?
Warmth and light from the upper lamp gradually dry the top layer of soil, driving moisture-loving micro-arthropods downward through the sieve into the collection container below.
Q2: What liquid is typically placed in the collection beaker?
70% ethanol is commonly used to preserve collected specimens for counting and identification, while damp filter paper or plaster can be used when live specimens are desired.
Q3: How long does an extraction run usually take?
Typical runs range from 24 to 72 hours depending on sample volume, soil moisture content, and lamp heat setting.
Q4: Are multi-unit Tulgren funnel racks available for research labs?
Yes. Alongside single units, multi-funnel configurations (such as 3-unit or 6-unit setups) can be supplied for parallel soil sampling.
5. Domestic Supply & Global Export Hubs
Domestic Indian Network
Delhi NCR Maharashtra Uttar Pradesh Karnataka Tamil Nadu Gujarat West BengalNorth & South America
United States (USA) Canada Mexico BrazilEurope & United Kingdom
United Kingdom (UK) Germany FranceMiddle East & Gulf (GCC)
UAE Saudi Arabia Oman Qatar Kuwait

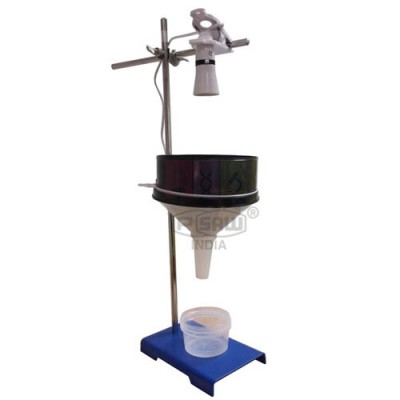

Tulgren Funnel
A soil sample is placed on the perforated plate and a 220V heating lamp is held above the soil, driving the organisms down through the funnel into a collecting jar.
Horizontal support rod and bosshead included.
Supplied with coarse and fine mesh.
Technical Specifications :
Sieve depth: 65mm
Funnel diameter: 175mm
Sieve diameter: 170mm
Requires a low wattage bulb (B22D, Bayonet fitting 22mm diameter, 40 watt or less).
