Product Information
SPECIFICATIONS:
- MODEL : PSAW-200
- Make : PSAW
- Measurement Range : 0-1000 NTU, in 3 Ranges (0.00-9.99, 10.0-99.9, 100-1000 NTU)
- Resolution : 0.01 (0-9.99 NTU), 0.1 (10.0-99.9 NTU), 1 (100-1000 NTU)
- Accuracy : +2% of reading for 0-500 NTU, +3% of reading for 501-1000 NTU
- Calibration Points : 2 to 7 points (0.02, 10.00, 200, 500, 1000, 1500, 2000 NTU)
- TSS Range : Depending on the TSS conversion factor
- Resolution (TSS) : 0.1/1
- TSS Accuracy : ±3% of reading
- Light Source : Infrared-emitting diode (850 nm wavelength)
- Detector : Silicon Photodiode
- Stray Light : < 0.02 NTU
- Sample Vials : 60 (H) x 25 (Dia) mm
- Memory : Stores up to 200 data sets
- Display : LCD display
- Password Protection : Yes
- Operating Temperature : 0-50°C
- Power Requirements : Adapter, Using AC 230V, ±10%, 50/60Hz
- STANDARD ACCESSORIES : Main Instrument, Empty Vial-Ino, Calibration Standards 3(2.00NTU, 500NTU, 1000NTU), Cloth, Power Adaptor, Test Certificate
- WARRANTY : 1 YEAR

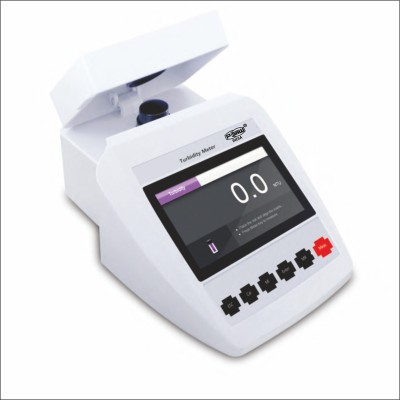

TURBIDITY METER (PSAW-200)
Advanced Turbidity Meter with TSS Measurement Mode for Accurate & Reliable Results
SALIENT FEATURES:
- Turbidity meter with TSS measurement mode, selectable four turbidity units.
- Equipped with a bright LCD display
- 2 to 7 points calibration using the ormazin standards
- Selectable units: NTU, FNU, EBC and ASBC
- TSS conversion factor ensures accurate measurement for Total Suspended Solids.
- Continuous measurement mode for indexing and matching sample vials
- Hold function freezes current reading for easy viewing and recording
- Password protection prevents unauthorized calibration and settings.
- Help message as an operational guide
- System menu allows setting the 9 parameters including date, time, resolution etc.
- Reset feature automatically resumes all settings to factory default
