Product Information
PC CONFIGURATION:
- Branded PC with Windows 10 OS
- Intel® Core™ i5 Processor 13th Gen
- 8 GB RAM
- 512 GB Hard Drive
- 22" Monitor, 1920 x 1080 Resolution
- USB Mouse & Keyboard
DIGITAL CAMERA SPECIFICATIONS:
- Camera Type : Scientific Color CMOS Camera
- Sensor : 5.0 Megapixel Color CMOS
- Resolution : 2464 x 2056 pixels (5.07 MP)
- Pixel Size : 3.45 μm x 3.45 μm
- Chip Size : 8.5 mm x 7.1 mm, equivalent to 2/3" (diag. 11.1 mm)
- Spectral Range : 400-720 nm with IR barrier filter :
- Frame Rate : 36 FPS or higher at full resolution
- Full Well Capacity : 10,500 electrons
- Gain Control : 1x to 16x
- Exposure Time : 100 µs to 4 s
- Bit Depth : Selectable 8-bit & 12-bit
- IR Filter : Factory-integrated IR cut filter
- Adapter : C-mount adapter for direct mounting
IMAGING SOFTWARE FEATURES:
- Image & video acquisition with camera control
- Measurement tools: distance, perimeter, area, angle, circle, polygon, gray values
- Movie recorder (Start/Stop)
- Panorama (WSI) - manual stitching
- Shading correction & improved stitching position search
- Step-less scaling & zooming
- All functions in reduced or full-size mode
- Interactive measurement & annotation
- Manual Extended Focus (EDF)
- Image enhancement: exposure, white balance, contrast, gamma, sharpness, ROI
- Metadata management, visualization & printing
- Export: JPEG, TIFF, BMP, PNG, AVI/MP4
APPLICATIONS
- Diagnostics
- Research
- Education
- Laboratories
- Documentation

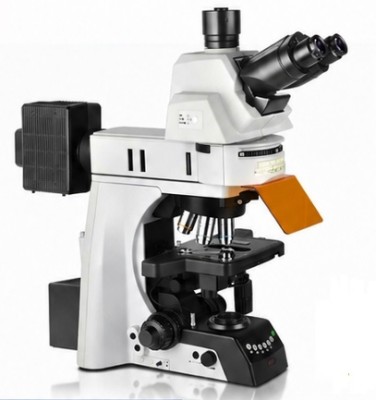

UPRIGHT RESEARCH MICROSCOPE WITH IMAGING ATTACHMENT
- Advanced upright LED fluorescence microscope with excellent optics, intelligent illumination and a high-performance digital imaging system for research, diagnostics, education and routine laboratory applications.
MICROSCOPE SPECIFICATIONS:
- Microscope Type : Upright LED Fluorescence Microscope with transmitted & reflected illumination
- Observation Tube : Binocular phototube, 30° inclined, 100:0/0:100 splitting ratio, camera attachment without replacing tube
- Eyepieces : 10x wide-field, 23 mm FOV, ±5 diopter, with rubber eyecups
- Nosepiece : Encoded 5-position revolving nosepiece with anti-collision protection
- Objectives : EC Plan-Neofluar Series
10x/0.30 Ph1 M27
20x/0.50 Ph2 M27
40x/0.75 Ph2 M27
100x/1.30 Oil Ph3 M27
- Stand : Ergonomic stand with coarse & fine focusing knobs on both sides, focus stop, integrated power unit, 15 mm Z focus range
- Stage : Mechanical stage 75 x 50 mm travel, right drive, extendable, with torque setting & dual slide holder
- Condenser : Abbe condenser NA 0.90 with 5-position turret disk for BF, DF & Phase contrast
- Transmitted Illumination : 10 W LED with Light Manager for uniform brightness, LED life ≥ 60,000 hours
- Fluorescence Illumination : Encoded LED illumination with 385 nm, 470 nm & 565 nm; single band pass filters for DAPI, FITC & TRITC
- ECO & Smart Features : Automatic shutter in transmitted light path, auto switch-off after 15 min inactivity, snap buttons on both sides, active light manager with visual feedback in eyepieces
- Stand Compatibility : Supports optional 35 W halogen illumination without external power supply
- Specimen Holder : Spring-loaded holder for one-hand operation (spring lever left)
- Focus System : Coarse and fine focusing on both sides; focus stop adjustment
