Product Information
Technical Parameters:
- Wavelength Range : 190 – 1100nm
- Wavelength Accuracy : ± 0.5nm
- Wavelength Repeatability : < ±0.2mn
- Display : 7" Color Touch panel display ( 1280 x 800 Pixels)
- Data interval when scanning : 0.1, 0.2, 0.5, 1.0, 2.0, 5.0nm
- Scan speeds : Slow, Medium & Fast 1600nm/min
- Photometric Range : -3A to +5A
- Photometric Linear Range : -2A to +3.5A
- Photometric accuracy : ±0.002A at 0.5A. ±0.004A at 1A. ±0.008A at 2A
- Spectral bandwidth : 2.0nm
- Noise : 0.0002A at 0A; =0.0003A at 1A, ≤0.0004A at 2A @ 260nm & 500nm
- Drift : <0.0005A/hr
- Stray light : @198nm <1.0%T; @220nm , <0.05%T; 340nm <0.03%T
- Baseline Flatness : ±0.002A
- Detector : Dual Silicon photodiode
- Warranty : 3 Year’s
- Certification : CE and ISO Certified.

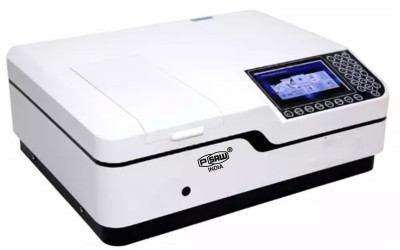

UV VISIBLE SPECTROPHOTOMETER
Salient Features:
- Double beam,
- Xenon flash lamp.
- Czerny-Turner optical system with reference cell position.
- Removable, washable sample compartment.
- Easy-access top-&-front sample compartment lid.
- 7" High Definition Color Touch panel display.
- Sloping surfaces to shed spills.
- Live Display in Abs, %T or Concentration
- Scanning
- Fixed wavelength at multiple wavelengths with calculations
- Quantitative, OD600 Analysis, Kinetics
- Programmable method library
- Smart Start direct boot-up Quartz Cuvette, Stabilizer
