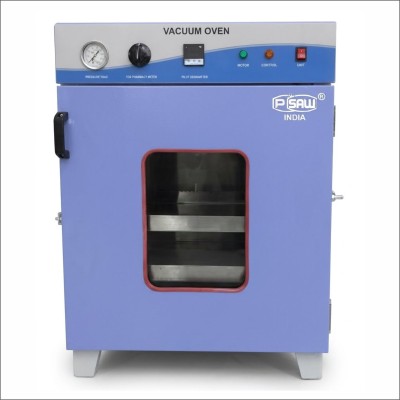

VACUUM OVEN (106/C)
Model No: PSAW-106/C
SALIENT FEATURES:
- Designed to operate controlled environments relative humidity <1% RH.
- Adjustable Footings For Easy movement & Stable placement.
- Inner Smooth mutor finish for easy Cleaning & Cornasion Resistance.
- Suitable Sealing to achieve vacuum & Door locking provisions
- Provision Adjusting the Height of the Shelves
- Setting of temp, with Heating rate & Soaking duration through a keypad
- Emergency Switch for Emergency System Stundown Facility.
- High-quality Heat-resistant Ceramic Wool insulation for thermal Insulation & Energy Efficiency
- Thermal insulation to External Surface tomp, of <50°C during operation.
- Compact Outer dimensions Suitable for available working space.
- Event of power falture, the System provision to Automatically Resume the process once power is restered, Manual Resumption.
- Vacuum Pump For Cooling purposes
- Oven Hold Volcum Anti Leakage for min. 48hrs.
Product Information
TECHNICAL SPECIFICATIONS:
- Type : Front-loading, hinged-door type high-temp, cuboidal vacuum drying oven.
- Warking Environment : Suitable for Class 10,000 Clean room Applications.
- Construction : Interior Chamber SS 316 Stainless Steel Material
- Window Door : Heat-tempered Class Window Fitted
- Chamber Capacity : 230 litres
- Temp. Range : Ambient +5°C to 250°C
- Temp. Control Accoracy : ±2.0°C
- Display Resolution : <1°C
- Display : Analog & LED Digital Display
- Range : 0 to -0.1 MPa/700mm Hg
- Spatial Temp. Unifimnity : ±1.5°C @ 150°C
- Nos. of Shelves : 4 Nos. (Min. Weight Bearing Each Shelf 10 kg)
- Shelf Material : Stainless Steel (SS-304)
- Usable Depth : <550 mm (Horizontal-Hand Reach).
- Total Weight : 400 kg. Approx.

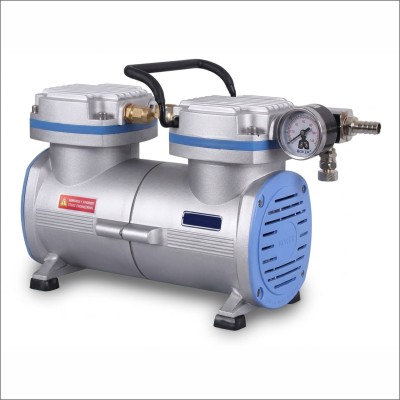

- Vacuum Pump : Dry vacuum pump with Custom Non-Return Valve (NRV) and SS 316 piping
- Vacuum Hange : Digital Vacuum Gauge 2½" Dial type
- Heating Rate : >1°C p/min.
- Temp. Control : Programmable digital PID Temp. controller Coupled with suitable thermocouple, with Over-Temp. Protection
- Temp. Display : Digital display for Clear & Accurate temp. Indication.
- Power Supply : 230V ±2.5%, Single-phase
- Warranty : 2 year's
- Accessories : Instructional Manual and Power Cord and Plug with Warranty Card
