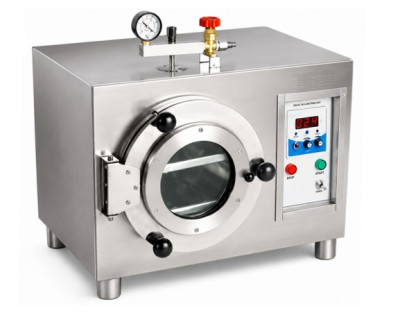

VACUUM OVEN (VO-50)
Model No: PSAW-VO-50
SALIENT FEATURES
- Bench-top front-loading vacuum drying oven with cuboidal chamber design.
- Laboratory-grade corrosion-resistant SS 316L product contact surfaces with smooth internal finish for easy cleaning & maintenance.
- SS 316L Frame Construction for superior Corrosion Resistance.
- Double-Walled insulated door with observation window for process visibility.
- Programmable PID temp. Control with dual K-type thermocouple arrangement.
- Integrated digital vacuum monitoring through Pirani gauge.
- Oil-free dry vacuum pump with moisture trap & non-return valve.
- Adjustable shelves & trays for flexible sample loading.
- Emergency stop system with fault alarms & Safety protections.
- Suitable for moisture removal, vacuum drying, thermal treatment, & lab.process applications requiring controlled temp. and vacuum conditions.
- Provision for monitoring, setting, & Controlling vacuum levels
- Vacuum pump 2 meters away from the oven with necessary piping and accessories.
- Integrated control panel for monitoring and setting temp. and vacuum parameters.
Product Information
TECHNICAL PARAMETERS
- Exterior Material : SS 316L Stainless Steel Frame
- Vacuum Chamber : 50 Litres Capacity
- Chamber Material : SS 316L Stainless steel Construction.
- Front Panel Door : Double-wall Insulated Hinged door with toughened glass window
- Sealing Arrangement : Vacuum-tight Sealing gasket
- Cooling Provision : Cooling the chamber flange
- Insulation : High-efficiency thermal insulation
- Operating Temp. : Skin temp.<50°C .
- Shelves : 2 Nos. Removable & Height-Adjustable SS 316L .
- Trays : Trays with SS handles 50 mm (2") Side walls for improved material Holding.
- Temp. Control System : Ambient to 130°C.
- Temp. Accuracy : ±2°C at 100°C .
- Controller : Digital LED Display with PID Temp. Controller ( Brand Make) .
- Temp. Sensors : 2 Nos. K-Type Thermocouples ( Main and Auxiliary)
- Display : Digital display for Set value and actual process temp..
- Vacuum Range System : Atmospheric Pressure (50 mmHg)
- Vacuum Measurement : Digital High Vacuum Pirani Gauge.
- Vacuum Pump : Oil-free Vacuum Pump Capable Specified vacuum level.
- Safety Features : In-built non-return valve to prevent backflow.
- Interconnection : Flexible Vacuum hose for Connection between oven & vacuum pump.
- Moisture Protection : Suitable moisture trap.
- Alarms : Audible and Visual Alarm Facility
- Emergency Protection : Emergency Stop Switch.
- Power Supply : 230 V AC ±10%, 50 Hz, Single Phase
- Safety Features : Over-temp. protection, vacuum protection, emergency stop, fault diagnostics, and electrical safety interlocks.
- Documentation : OQ Documents and Maintenance Manual, Power Cord and Plug, Warranty Card
- Certification : CE, and ISO, Certified
- Warranty : 3 Year’s
