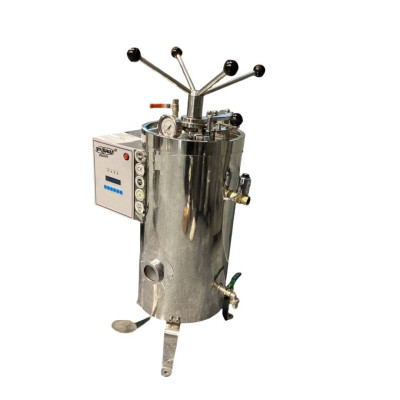

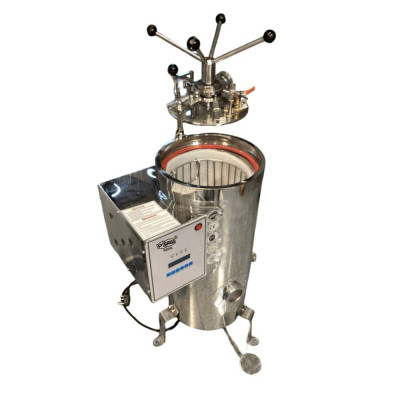

VERTICAL AUTOCLAVE
Model No: PSAW-902
Salient Features:
- Automatic Pressure Control Switch.
- Manual provision for water filling & water draining.
- Low water Level Indicator.
- Audio-Visual Alarm system.
- Water Inlet, Outlet & Steam release valves, & safety valves.
- Built in Automatic cut-off system when autoclave is dry.
- Water inlet & outlet valves provided for controlled operation.
- Water level indicator for continuous monitoring.
- Automatic pressure control switch for safe & stable operation.
- Electric heater fitted at the bottom of the unit for efficient heating.
- SS Lid with radial locking device.
- Pressure Gauge Features
Product Information
Technical Parameters:
- Model : PSAW-902
- Chamber Capacity : 98L
- Chamber Door Material : Stainless Steel 304
- Basket Material : Stainless Steel 304
- Inner Dimension Size : 18" (dia) x 24" (deep)( Inches)
- Chamber type : Vertical and Circular Shape Type
- External / Internal Material : SS (16 AISI 304 Grade)
- Working Pressure : 15-20 PSI
- Heater : Immersion Heater
- Chamber Material Construction : Double walled
- Display : Digital Microprocessor Controller LED temp. Display
- Lid Lifting : Paddle Lifting Device
- Working Temp. Range : 121°C
- Gasket Material : Made of High Grade Silicon
- Type of Sterilizer Chamber Door : Radial locking type
- Sterilizer Chamber Door Operation : Manual
- Power Supply : 220 / 230V, 50/60 Hz., Single Phase
- Warranty : 1 Year
- Compliance of Chamber : ISO & CE Certified.
