WATER DISTILLATION UNIT

Home WATER DISTILLATION UNIT

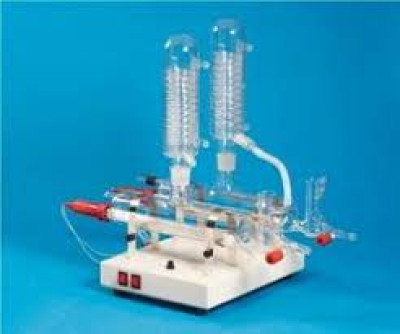

PSAW WATER DISTILLATION UNIT

WATER DISTILLATION UNIT

Model No: PSAW-SH40

Salient Features:

  • Boiler is fitted with a removable Silica Sheathed (Quartz) Heater and Screw Threaded connector for ease of cleaning when scaling is formed.
  • Distillate temp. is around 25 to 45°C which is ensured by an efficient condenser.
  • The stand is powder coated for rust free operation and lustrous appearance.
  • The unit automatically switches off if water level in the boiler falls below heater.
  • Cooling water from the condenser is re-circulated into the boiling chamber, hence saving energy.
  • Drain nozzle/Teflon Screw Cock is provided for easy cleaning & maintenance.
  • Electrical Power: 220/240 V, 50/60Hz, Single Phase Supply
Enquire Now

Product Information

Technical Parameters:

  • Model   : Double Still
  • Water Capacity : 4 LT approx.
  • Conductivity  : <=1 to 2.0 µs/cm
  • pH Value  : 5-7
  • Distillation  : Pyrogen Free
  • Distillation Temp.  : 25-70 Approx.
  • Power Rating  : 9 KW
  • Cooling Consumption : 50 LPH
  • Quartz Heaters  : 2 Nos.
  • Safety Features : Auto Cut off
  • Power Supply   : 230V AC 50/60 hz., Single Phase
  • Warranty  : 1 Year
  • Certified  : CE & ISO Certified
