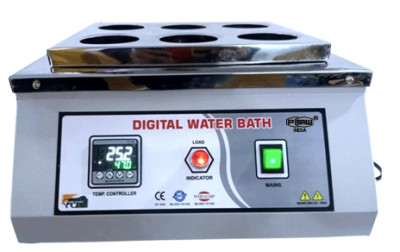

WATER BATH
Model No: PSAW-120
Salient Features:
- Integrated Circulation Pump
- Control panel ON/OFF Switch Function
- Heating & temp. (set & actual) indicators.
- Power mains indicator, with temp. and Circulation controller.
- Water bath chamber Shaking controller facility
- Timer
- Removable Bottom Plate & Shaking Inserts
- Drain Plug & Drain Screw (for emptying) in Chamber
Product Information
TECHNICAL PARAMETERS
- Model : PSAW-120
- Construction Type : Double Walled (Rectangular)
- Inner Chamber Material : SS 304 Grade
- Lid Material : SS 304 Grade
- Exterior Material : SS with Powder Coating Finish
- Chamber Capacity : 12 Ltr. Approx
- Insulation : Mineral wool
- Number of Racks : 2 Nos.
- Number of Holes : 6 Nos.
- Holes Dia : 75 mm
- Cover Type : Gable Shape
- Heat Source : Immersion Heater
- Heating Capacity : ≥800W
- Temperature Range : 5°C above ambient to 99.9°C
- Temperature Sensitivity : ≤ 0.5°C
- Temperature Increment : ≤ 1°C
- Temperature Accuracy : ≤ 0.1°C
- Controller : Microprocessor PID Based LED Display Controller
- Shaking Frequency : 20–200 RPM Adjustable
- Keypad Type : Seamless & Waterproof
- Safety Device : Alarm system
- Timer Increment Step : 60 Sec.
- Power Supply : 220 V AC, 50 Hz
- Warranty : 5 year
- Certi ied : ISO 9001:2008 & CE
- Included Accessories : Instructional Manual and Warranty Card
SAFETY FEATURES:
- Low Fluid Alarm
- High Limit Alarm
- Over Temperature Alarm & Cut-off
- Redundant Safety Thermostat
