Product Information
Application Modes
- Weighing - Determine the weight of items in the selected unit of measure.
- Parts Counting - Count samples of uniform weight.
- Percent Weighing - Measure the weight of a sample displayed as a percentage of a preestablished Reference Weight.
- Dynamic Weighing - Weigh an unstable load. Scale takes an average of weights over a period of time.
- Density Determination - Determine density of solids or liquid. With the weigh below hook, it’s possible to perform specific gravity tests for objects that cannot be easily placed on the weighing pan.
- Check Weighing - Compare the weight of a sample against target limits.
- Display Hold - Manually holds the last stable weight or highest weighing value on the display.
- Totalization / Statistics - Measure cumulative weight of multiple items. Cumulative total may exceed balance capacity.
- Formulation - For compounding and recipe making. The number of components can range from 2 to 50.
- Batch Printing - Combine multiple samples into one printout rather than printing them one at a time.
TECHNICAL SPECIFICATIONS:
- Model - PSAW- 523
- Capacity (g) - 520
- Readability d (g) - 1mg
- Verification Interval (g) - 0.01
- Class - II
- Repeatability (sd.), ≤5% of Full Load (g) - 7mg
- Linearity Deviation (g) - ±0.002
- Stabilization Time (sec) - ≤2
- Sensitivity Drift (ppm/°C) - 3
- Min-Weight (Typical) (g) (USP, 1%) - <1.4 g
- Min-Weight (Typical) (g) (USP, K=2, U=0.1% - 140mg
- Weighing Units - gram, milligram, kilogram, mesgal, momme, Newton, ounce, pennyweight, Baht, carat, grain, pound, Tael (Hong Kong), Tael (Singapore), Tael (Taiwan), tical, tola, troy ounce, custom (1)
- Weighing Units, Approved Models - ct, grain, g, mg, oz, ozt, dwt
- Weighing Applications - Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Formulation, Density Determination, Totalization, Display Hold, Batch Printing
- Pan Size - Ø 5.1 in / 130 mm
- Calibration - Automatic
- Tare Range - To capacity by subtraction
- Power Requirements - AC Adapter Input: 100-240 VAC 0.3A 50-60 Hz AC Adapter Output: 12 VDC 0.84A
- Display Type - Full-Color TFT Touchscreen WQVGA Graphic LCD
- Display Size - 4.5 in (diagonal)
- Base Housing ( H×W×D) - 354 × 209 ×351 mm

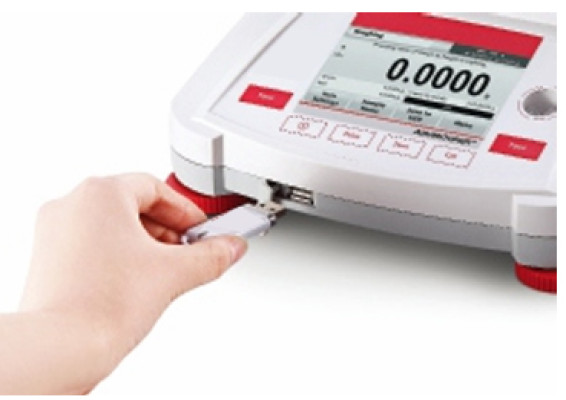

- Communication - RS232, USB -A, USB-C, Ethernet ( LAN), bluetooth ( Optional)
- Temperature Range - 50°F to 86°F/10°C to 30°C
- Humidity Range - Maximum relative humidity 80 % for temperatures up to 86°F/30°C
- Net Weight - 12.8 lb / 5.8 kg
- Warranty - 1 Year
- Certification - CE and ISO Certified
WEIHGING BALANCE (Semi-Micro, Analytical, and Precision Balance)
Intuitive Balances Designed for Routine Weighing
- Striking the ideal balance between inventive features and functional, uncomplicated weighing capabilities, the PSAW incorporates all of the applications necessary for routine weighing and measurement activities. With a color touchscreen, three level user management to fulfill GLP/GMP compliance capabilities, two USB ports, and much more.
Unique Features Include:
- Balance feature a color TFT touchscreen, icon-based user interface, and an ergonomic design -making them easy to configure and use.
- Features such as specialized weighing modes, multiple connectivity options, and provide versatility and flexibility for a variety of applications.
- Durable construction, large weighing surfaces, a space-saving draftshield design, and full housing in-use cover a low for use in lab, education and industrial environments.
Stability, Accuracy, and Fast Operation Ensure Optimal Weighing Results in Routine Weighing Tasks:
- Weighing Performance - Delivers stable and reliable weighing results for routine weighing tasks
- Stabilization Time - Fast stabilization time improves productivity in the laboratory
- Calibration - Selected models feature PSAW automatic calibration system that performs routine maintenance by calibrating the balance daily
Color TFT Touchscreen Offers Easy and Fast Operation of Applications:
- Operate and access PSAW nine application modes and abundant features that eliminate the need to do several manual calculations through the modern color touchscreen
- Operators can wear laboratory gloves while utilizing the touchscreen, eliminating the inconvenience and hazards associated with constantly putting on and removing gloves
- In addition to the TFT touchscreen, Balance also has six mechanical keys that provide tactile feedback and allow the operator to perform repetitive operations such as tare, zero, calibration, and print
